| Proprietà del prodotto |
 |
 |
|
|
| Modello di prodotti |

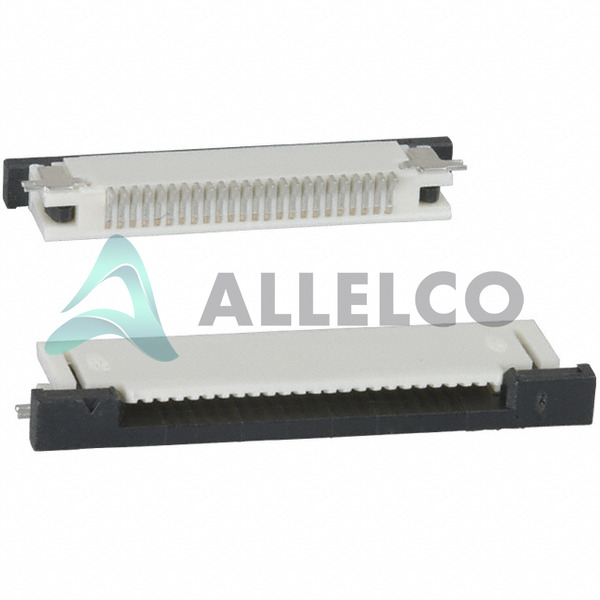

52435-2472 |
52435-3091 |
52435-2591 |
52435-2891 |
| fabbricante |
Affinity Medical Technologies - a Molex company |
Affinity Medical Technologies - a Molex company |
Affinity Medical Technologies - a Molex company |
Affinity Medical Technologies - a Molex company |
| Intonazione |
0.020" (0.50mm) |
0.020" (0.50mm) |
0.020" (0.50mm) |
0.020" (0.50mm) |
| Materiale attuatore |
Polyphenylene Sulfide (PPS) |
Polyphenylene Sulfide (PPS) |
Polyphenylene Sulfide (PPS) |
Polyphenylene Sulfide (PPS) |
| attuatore Colore |
- |
- |
- |
- |
| Colore involucro |
- |
- |
- |
- |
| Moisture Sensitivity Level (MSL) |
1 (Unlimited) |
1 (Unlimited) |
1 (Unlimited) |
1 (Unlimited) |
| fine |
Solder |
Solder |
Solder |
Solder |
| Meccanismo di bloccaggio |
Slide Lock |
Slide Lock |
Slide Lock |
Slide Lock |
| temperatura di esercizio |
-40°C ~ 85°C |
-40°C ~ 85°C |
-40°C ~ 85°C |
-40°C ~ 85°C |
| Tipo flessibile piatto |
FFC, FPC |
FFC, FPC |
FFC, FPC |
FFC, FPC |
| Tipo montaggio |
Surface Mount, Right Angle |
Surface Mount, Right Angle |
Surface Mount, Right Angle |
Surface Mount, Right Angle |
| Descrizione dettagliata |
24 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle |
30 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle |
25 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle |
28 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle |
| Tensione nominale |
50V |
50V |
50V |
50V |
| Nominali infiammabilità materiale |
UL94 V-0 |
UL94 V-0 |
UL94 V-0 |
UL94 V-0 |
| Materiale del contatto |
Phosphor Bronze |
Phosphor Bronze |
Phosphor Bronze |
Phosphor Bronze |
| cicli di accoppiamento |
20 |
20 |
20 |
20 |
| Tipo di connettore / contatto |
Contacts, Top |
Contacts, Top |
Contacts, Top |
Contacts, Top |
| Tipo di estremità cavo |
Straight, Tapered |
Straight, Tapered |
Straight, Tapered |
Straight, Tapered |
| Caratteristiche |
Solder Retention, Zero Insertion Force (ZIF) |
Solder Retention, Zero Insertion Force (ZIF) |
Solder Retention, Zero Insertion Force (ZIF) |
Solder Retention, Zero Insertion Force (ZIF) |
| Valutazione attuale |
0.5A |
0.5A |
0.5A |
0.5A |
| Serie |
Easy-On 52435 |
52435 |
52435 |
52435 |
| imballaggio |
Tape & Reel (TR) |
Tape & Reel (TR) |
Tape & Reel (TR) |
Tape & Reel (TR) |
| FFC, FCB Spessore |
0.30mm |
0.30mm |
0.30mm |
0.30mm |
| Finitura contatto |
Tin Bismuth |
Tin-Lead |
Tin-Lead |
Tin-Lead |
| Altri nomi |
052435-2472
052435-2472-C
0524352472
0524352472-C
52435-2472-C
524352472
524352472-C
WM7711TR |
052435-3091
052435-3091-C
0524353091
0524353091-C
52435-3027
52435-3091-C
52435-3091-ND
524353091
524353091-C
WM5690TR |
052435-2591
052435-2591-C
0524352591
0524352591-C
52435-2527
52435-2591-C
524352591
524352591-C |
052435-2891
052435-2891-C
0524352891
0524352891-C
52435-2827
52435-2891-C
524352891
524352891-C |
| Altezza sopra la scheda |
0.079" (2.00mm) |
0.079" (2.00mm) |
0.079" (2.00mm) |
0.079" (2.00mm) |
| Spessore finitura contatto |
39.4µin (1.00µm) |
- |
- |
- |
| Materiale alloggiamento |
Polyamide (PA46), Nylon 4/6 |
Polyamide (PA46), Nylon 4/6 |
Polyamide (PA46), Nylon 4/6 |
Polyamide (PA46), Nylon 4/6 |
| Numero di posizioni |
24 |
30 |
25 |
28 |
| Stato senza piombo / Stato RoHS |
Lead free / RoHS Compliant |
Contains lead / RoHS non-compliant |
Contains lead / RoHS non-compliant |
Contains lead / RoHS non-compliant |
